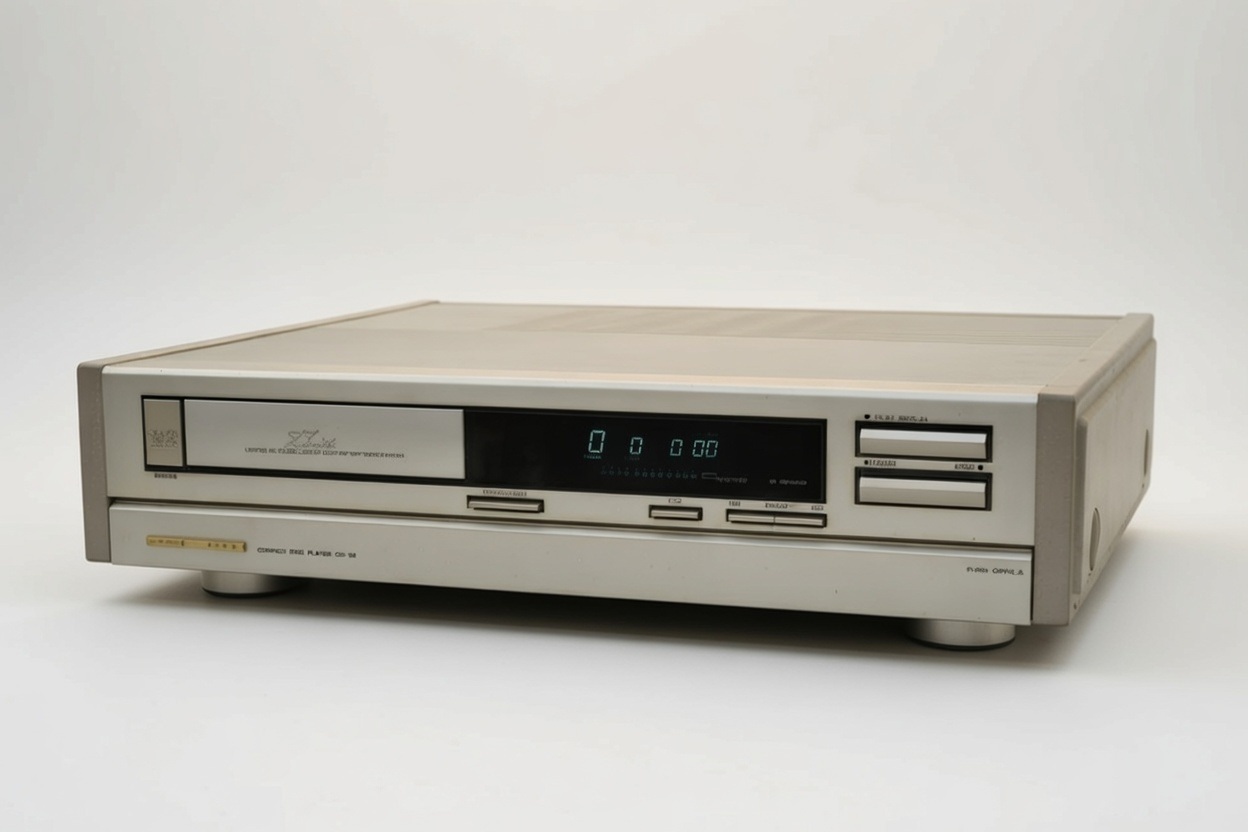

Marantz CD-94

Experts on Marantz CD-94 / CD-95 / CD-99 Repair

Marantz CD-94, CD-95, CD-99 CD Players (1985-1989) | Professional restoration guide

Years Made & Context

Production Years: 1985 - 1989

The Marantz CD-94, CD-95, and CD-99 represent Marantz's flagship CD players during the mid-to-late 1980s. These models were based on the acclaimed Philips CDM-1 transport mechanism and utilized advanced 16-bit digital-to-analog conversion technology. The CD-94 was the original model, followed by the improved CD-95, with the CD-99 being the ultimate evolution featuring the superior CDM-1 MkII transport and enhanced circuitry. These players are renowned for their musical, analog-like sound character and robust construction.

Key Specs: Transport: Philips CDM-1 (CD-94/95) or CDM-1 MkII (CD-99) | DAC: 16-bit with 4x oversampling | Frequency Response: 20Hz-20kHz ±0.3dB | Dynamic Range: >100dB | THD: <0.002% | Weight: 11-12kg

Current Issues & Common Failures

Now 35+ years old, these classic CD players suffer from age-related electronic and mechanical degradation. The legendary CDM-1 transport mechanism, while robust, requires careful maintenance and specific expertise.

⚙️ CDM-1 Transport Mechanism Issues

  • Laser Pickup Aging: CDM-1 laser assemblies gradually lose output power, causing reading difficulties.
  • Sled Mechanism Wear: Grease hardens on precision rails, causing slow or erratic movement.
  • Spindle Motor Problems: Bearing wear leads to unstable rotation speed and increased noise.
  • Drawer Mechanism: Belt degradation, gear wear, or motor issues preventing proper operation.

🔋 Capacitor Issues

  • Main Power Supply: Large filter capacitors (often 10,000µF+) in the primary power supply.
  • Regulator Circuits: Multiple voltage regulator sections with aging electrolytic capacitors.
  • DAC & Analog Stage: Critical capacitors in the signal path affecting audio quality.
  • Servo Circuits: Capacitors in focus, tracking, and spindle servo control circuits.

🔧 Mechanical & Control Problems

  • Button Contacts: Front panel control buttons becoming intermittent or unresponsive.
  • Display Issues: Vacuum fluorescent displays (VFD) dimming or showing segment failure.
  • Remote Control: Original RC-5 remote control failing or needing battery contact repair.
  • Transport Locking: Some units have transport locking screws that can cause issues if engaged.

🔌 Electronic Circuit Failures

  • DAC Chip Issues: Early 16-bit DAC chips (TDA1541, SAA7220) can develop faults.
  • Digital Filter: SAA7220P/B digital filter chips in the 4x oversampling circuit.
  • Clock Circuits: Crystal oscillators and associated components aging affecting timing.
  • Output Stage: Discrete or op-amp based analog output circuits needing service.

⚠️ CRITICAL: The Philips CDM-1 and CDM-1 MkII transport mechanisms are no longer manufactured. Original laser pickups are extremely scarce. Professional servicing with proper test equipment is essential for successful restoration.

Repair Solutions & Restoration Approach

⚠️ These players require specialized knowledge of CDM-1 transport mechanisms and 1980s digital audio technology. Professional calibration equipment (oscilloscope, test discs) is highly recommended for proper adjustment.

Step-by-Step Restoration Process:

  1. Initial Assessment & Diagnosis
    • Test laser performance with test disc and oscilloscope
    • Check all power supply voltages before extensive testing
    • Verify transport mechanism mechanical operation
    • Test digital signal processing chain integrity
  2. CDM-1 Transport Restoration
    • Complete Mechanism Service: Disassemble, clean, and re-grease sled rails with appropriate lubricant
    • Laser Service: Clean objective lens, test laser current (typically 50-60mA), replace if necessary
    • Spindle Motor: Clean and lubricate if possible, replace if bearing noise is excessive
    • Drawer Mechanism: Replace belt, clean microswitches, ensure smooth operation
  3. Power Supply Restoration
    • Main Filter Caps: Replace large electrolytic capacitors in primary power supply
    • Regulator Circuits: Replace all electrolytic capacitors on regulator boards
    • Multiple Voltages: Check +5V, +12V, -12V, ±15V supplies as applicable to model
    • Bridge Rectifiers: Test and replace if necessary
  4. Digital & Analog Circuit Restoration
    • DAC Section: Service TDA1541 or equivalent DAC chip circuitry
    • Digital Filter: Check SAA7220P/B operation and associated components
    • Clock Circuits: Replace aging crystal oscillators and timing capacitors
    • Analog Output: Service discrete or op-amp output stages, replace coupling capacitors
  5. Control & Interface Restoration
    • Front Panel: Clean all button contacts, check display driver connections
    • VFD Display: Check filament voltage, replace display if segments are dead
    • Remote Sensor: Clean and test infrared receiver circuit
    • Output Connectors: Clean RCA and digital output connectors
  6. Calibration & Final Testing
    • Laser Calibration: Adjust laser current, focus offset, tracking offset with test disc
    • Servo Adjustments: Set focus gain, tracking gain for optimal performance
    • Audio Testing: Measure frequency response, distortion, channel balance
    • Long-term Reliability: Run extended play tests with various CD types

Capacitors That Need Replacing

Complete capacitor replacement is essential for restoring these classic players to optimal performance and reliability.

Main Power Supply

Primary Filter Capacitors

Large electrolytic capacitors (typically 10,000µF-22,000µF) in the main power supply section. These are critical for clean power delivery.

Regulator Circuits

Multiple Voltage Rails

All electrolytic capacitors on regulator boards providing ±5V, ±12V, ±15V to various circuit sections.

DAC & Digital Section

TDA1541/SAA7220 Circuits

Decoupling and filter capacitors around the DAC and digital filter chips. Critical for low-noise performance.

Analog Output Stage

Signal Path Capacitors

All coupling capacitors in the audio signal path. These directly affect sound quality and channel balance.

Servo Control Circuits

Focus/Tracking Servos

Capacitors in the servo control circuits that manage laser focus and disc tracking.

Clock & Timing

Crystal Oscillator Circuits

Capacitors associated with the crystal oscillators that control digital timing and reduce jitter.

CD-94/95/99 Specific Restoration Notes

CDM-1 vs CDM-1 MkII: CD-94 and CD-95 use CDM-1, while CD-99 uses the improved CDM-1 MkII. Parts are not always interchangeable.

TDA1541 DAC: These players use the legendary Philips TDA1541 16-bit DAC. These chips are still sought after but can develop faults.

SAA7220P/B Digital Filter: The "P" version (4x oversampling) is used in most units. The "B" version has different characteristics.

Model Variations: CD-95 adds digital output and improved power supply over CD-94. CD-99 features further refinements including CDM-1 MkII.

Display Differences: Some models use vacuum fluorescent displays (VFD) while others use LED. VFD displays often need replacement due to aging.

Transport Lock: Some units have a transport locking screw for shipping. Ensure this is disengaged before attempting to play discs.

Sound Character: When properly restored, these players are renowned for their musical, non-fatiguing sound that rivals modern high-end players.
