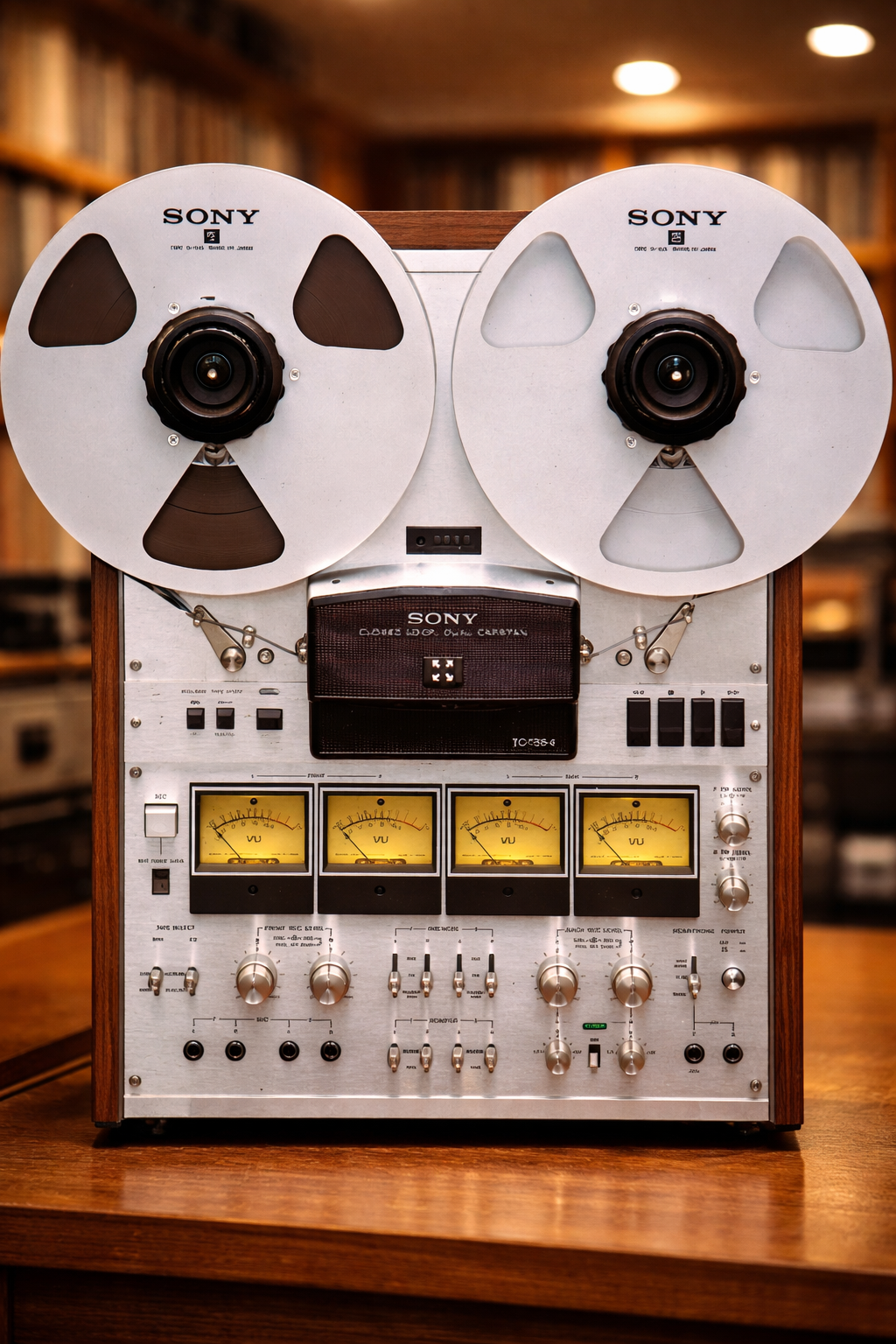

Common Errors with Sony TC-788-4
- Motor issues (won't start, erratic speed): Check motor drive board capacitors, solder joints, motor brushes, and bearings.
- Hum/noise (60Hz or 120Hz): Verify ground connections, power supply filter caps, and check for solder bridges.
- Channel imbalance: Inspect audio path capacitors, ensure matching values, and check head connections.
- Speed problems (wow/flutter): Replace all motor drive caps with low-ESR types, check capstan motor, lubricate bearings, and verify belt tension.
- No audio output: Check output coupling capacitors, mute relay operation, preamp voltages, and head continuity.
- Poor recording quality: Inspect bias oscillator capacitors, verify bias adjustment, and check record amp capacitors.
- Intermittent operation: Check all solder joints, clean switches/connectors, and verify connector seating.
- Transport control issues: Inspect control board capacitors, solenoid driver circuits, mode switches, and relay coil voltages.
Capacitors to Replace in Sony TC-788-4
| Location |
Original Value |
Recommended Type |
Notes |
| Power Supply (C1, C2) |
3300μF 63V |
Nichicon UPW |
Main filter, high temp/long life |
| Power Supply (C3, C4) |
1000μF 50V |
Nichicon UPW |
Secondary filter, high ripple |
| Audio Path (C5-C8) |
220μF 25V |
Elna Silmic II |
Signal coupling, premium audio grade |
| Motor Drive (C9, C10) |
220μF 35V |
Panasonic FM |
Low ESR, high ripple current |
| Bias Oscillator (C11, C12) |
47μF 35V |
Nichicon UKW |
Critical for recording quality |
Tip: Always use high-quality, genuine capacitors from reputable suppliers. Match voltage ratings or use higher, never lower. Replace any tantalum or old film capacitors with modern equivalents.
Calibration & Testing Procedures
- Visual Inspection: Check for solder bridges and clean joints using a magnifying glass.
- Continuity Check: Test for short circuits between power rails before powering up.
- Initial Power-Up: Use a dim-bulb tester to detect shorts and protect components.
- Voltage Measurement: Compare power supply voltages to service manual specs (±2%).
- Speed Calibration: Use a 3kHz test tape at both 7.5 IPS and 15 IPS. Adjust capstan motor speed trimmers for exactly 3000Hz. Tolerance: ±0.2%.
- Bias Adjustment: Connect audio oscillator (10kHz sine wave) to record input. Monitor playback output with oscilloscope. Adjust bias trimmer for maximum output, then back off 1-2dB.
- Azimuth Alignment: Use 10kHz alignment tape. Adjust head azimuth screws for maximum output. Tolerance: ±0.5dB between channels.
- Record Level Calibration: Input 1kHz tone at reference level (typically 0dBu). Adjust record level for 0VU on meters. Verify tape flux level with playback.
- Equalization Adjustment: Use frequency response test tape. Check response at 100Hz, 1kHz, 10kHz. Adjust EQ trimmers per service manual. Target: ±2dB 50Hz-15kHz at 7.5 IPS, ±2dB 30Hz-20kHz at 15 IPS.
- Burn-In: Allow 24-hour burn-in after recap before final calibration.
Pro Tip: Professional calibration requires an oscilloscope, audio frequency generator, and calibration test tapes. If you lack this equipment, TEK Media Group offers expert calibration services for Sony TC-788-4 and other professional tape decks.
